Insulating Oil Regeneration System Oil Recycling System Oil Filter Machine

Payment Terms: T/T,L/C
Place of Origin: Chongqing, China (Mainland)
inquire
Add to My Favorites
HiSupplier Escrow
Share |

Product Detail

Model No.: ZYD
Packing: WOODEN CASE
Type: Oil Purifier
Production Capacity: 100
Delivery Date: 15 DAYS
Brand Name: ZN

ZYD is special for treating the used and old transformer oil, mutual oil, switch oil.


Transformer OilPurifier,Insulating Oil Regeneration System, Oil Recycling System, TransformerOil FilterMachine
Place of Origin:
Chongqing China(Mainland)
Brand Name:
ZNOil Purifiers
Model Number:
ZYD-100 Oil Purifiers
Certificate:
CE, ISO 9001, CCC
Color:
Green, Blue, anyothers
capacities:
600 ~ 18000 Litersper hou...
transportation way:
byair, sea,railway
Warranty:
2years
Description
Why purify transformeroil? Maybe the first question should be, "why is itimportant to have purifiedoil in a transformer?"  Dissolved gasses intransformer oil can cause arcing,corona discharges, and overheating--reducingthe electrical efficiency andlifetime of the transformer. Likewise, watercontamination at levels as low as 30ppm (parts per million) can adverselyaffect the insulating strength of the oil.With ever-increasing standards forenergy efficiency of power distributiontransformers, the need to effectivelydegas will become even more important inthe future. particles contaminationwill also affect the function of insulatingoil. So we need to clean usedtransformer oil.

Application:

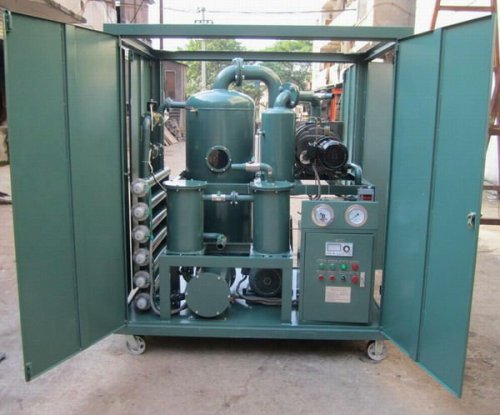

The Zhongneng Oilregeneration system (Series ZYD) has been speciallydesigned for on site use tocompletely regenerate insulating oils in energizedor de-energized transformers.The ZYD-I system provides regular oilpurification such as degassing, drying andparticulate removal but also canremove acidity, sludge, other soluble oil decayproducts and discoloration.
This isaccomplished by theuse of high vacuum degasification technology andparticulate filters combinedwith our special brand of earth. After treating,the oil can be reused as new.For special application, the system also can bemounted on a leak proof base andcan be installed and operated on a trailer.

Features:
1. Besides the commonvacuum oil purifier's function ofdewatering, degassing and eliminatingparticles, this machine can regeneratethe seriously deteriorated oil by removingthe polarity materials, such as thedeep oxides, free carbon in the oileffectively. It can make the seriouslydeteriorated oil reach to the normal indexlike anti-oxides, acid-alkaliwater-solubility.
2. Operationalcan be P.L.C(Programmable Logic Controller).
3. Unique vacuum dehydration, degassifier,regeneration system, adoptstereo-evaporation technology, high efficiently removewater, gas, particlesfrom transformer oil, improve oil quality and dielectricstrength.
4. Duplex 3D stereo-evaporation, eliminating the liquid waterquickly

5. UK g technologyby whichthe trace water that is show chain, such as dissolved water, can beremovedeffectively.
6. Instinctive removing impurities system filtering throughdouble FHtrapezoidal network and absorbing by high polymer without themechanical power

7. Advancedinfraredliquid-level automatic control system to accomplish fullyautomaticcontrol.
8. Specially applied to vacuum oiling and drying for powertransmissionequipments.
9. The oil of any grades can be treated either on- oroff-load.
10. Special oil pump design with lower noise.


11. Special additives fordepolarization, can recover oil color of agedtransformer oil to new, equippedwith flexible unloading device of short time,good efficiency small quality.Discolor under vacuum can save cost of treatment,the waste impurities doesn'tpollute environment (it can be used toarchitecture and road pave)
