Transformer oil acid removal system Transformer oil regenerator

Payment Terms:	T/T,L/C
Place of Origin:	Chongqing, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: ZYD

Packing: WOODEN CASE

Brand Name: ZN

Production Capacity: 100

Delivery Date: 15 DAYS

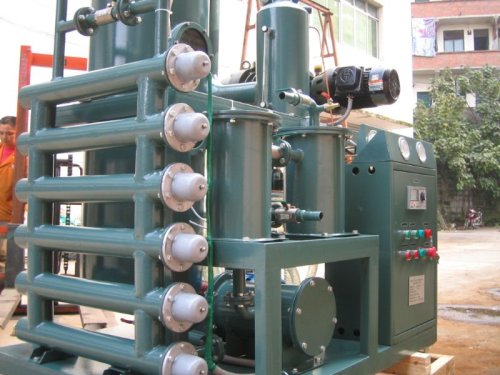

ZYD is special for treating the used and old transformer oil, mutual oil, switch oil.

Series ZYDDouble-stage transformer oil purifier can quickly remove water, trace water,gas, particles as well as acetylene, hydrogen, methane and other harmfulingredients from oil effectively

to improve oil'sdielectric strength, effectively making sure electric equipments working safelyand normally. Series ZYD oil purifier is particularly suitable for treatinghigh-grade transformer oil, super-voltage transformer oil and new transformeroil.

It can be usedfor filtration of more than 110V substation live line work onsite. Meanwhile,Series ZYD oil purifier can be used as independent vacuum source with functionsof vacuum drying and vacuum oiling.

Features:

1. Double-stagevacuum system, strong power of vacuum evacuating, ultimate vacuum value ≤5Pa.

2. Two vacuumseparating chambers, efficient oil film sprayer, increasing separating size andseparating time to ensure the dry-level and dielectric strength improvinggreatly.

3. Duplex-Stereofilm evaporation technology, combined with unique and advanced dewatering,degassing components, can rapidly and effectively separate water, gas fromoil.

4. Multi-stageprecision filtration system, mesh filtration combined with molecular adsorptiontechnologies.

5. Efficientelectric heating system, heating uniformity, less power consumption, safe, andreliable.

6.Double-infrared liquid level sensor, pressure protective system to ensuremachine operation easy and safely.

7. Adoptinterlocked protective system, which connect oil pump, heater and liquid levelsensor, avoiding blank heating, blank pumping, oil leak and electricity leak. Ifthere is any fault, machine will be power off automatically.

8. Functionsof live line work onsite, vacuum drying and vacuum oil filling.

BesidesDouble-Stage High-Efficiency Vacuum Insulation Oil purifier's function ofdewatering, degassing and eliminating impurities,

this machinecan regenerate the seriously deteriorated oil by removing the polaritymaterials, such as the deep oxides, free carbon in the oileffectively.

It can makethe seriously deteriorated oil reach to the normal index like anti-oxides, acid-alkali water-solubility.
