Double-Stage High Vacuum Transformer Oil Purifier Oil Distillation Oil Reprocessing Plant

Payment Terms:	T/T,L/C
Place of Origin:	Chongqing, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: ZYD

Packing: WOODEN CASE

Structure: Vacuum Filter

Material: Others

Production Capacity: 100

Delivery Date: 15 DAYS

Function: Oil Filter

Brand Name: ZN

ZYD transformer oil purifier is special for filtering the used and old transformer oil, mutual oil, switch oil.

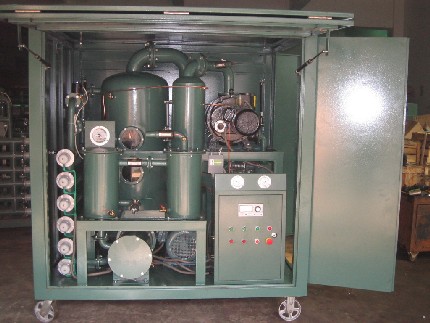

Double-Stage High Vacuum Transformer Oil Purifier

Application:

SeriesZYD Double-stage transformer oil purifier can quickly remove water, trace water,gas, particles as well as acetylene, hydrogen, methane and other harmfulingredients from oil effectively to improve oil's dielectric strength,effectively making sure electric equipments working safely and normally. SeriesZYD oil purifier is particularly suitable for treating high-grade transformeroil, super-voltage transformer oil and new transformer oil. It can be used forfiltration of more than 110V substation live line work onsite. Meanwhile, SeriesZYD oil purifier can be used as independent vacuum source with functions ofvacuum drying and vacuum oiling.

Features:

1.Double-stage vacuum system, strong power of vacuum evacuating, ultimate vacuumvalue ≤ 5Pa.

2. Twovacuum separating chambers, efficient oil film sprayer, increasing separatingsize and separating time to ensure the dry-level and dielectric strengthimproving greatly.

3.Duplex-Stereo film evaporation technology, combined with unique and advanceddewatering, degassing components, can rapidly and effectively separate water,gas from oil.

4.Multi-stage precision filtration system, mesh filtration combined with molecularadsorption technologies.

5.Efficient electric heating system, heating uniformity, less power consumption,safe, and reliable.

6.Double-infrared liquid level sensor, pressure protective system to ensuremachine operation easy and safely.

7.Adopt interlocked protective system, which connect oil pump, heater and liquidlevel sensor, avoiding blank heating, blank pumping, oil leak and electricityleak. If there is any fault, machine will be power off automatically.

8. Functions of live line work onsite, vacuum drying and vacuum oilfilling.
