Transformer oil purification machine, degasification, dehydration, remove mechanical impurities ZYD manufacturer from China Chn Chongqing Zhongneng Oil Purifier Manufacture Co., Ltd

Transformer oil purification machine, degasification, dehydration, remove mechanical impurities

Payment Terms:	T/T,L/C
Place of Origin:	Chongqing, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: ZYD

Packing: WOODEN CASE

Structure: Vacuum Filter

Material: Others

Production Capacity: 100

Delivery Date: 15 DAYS

Function: Oil Filter

Brand Name: ZN

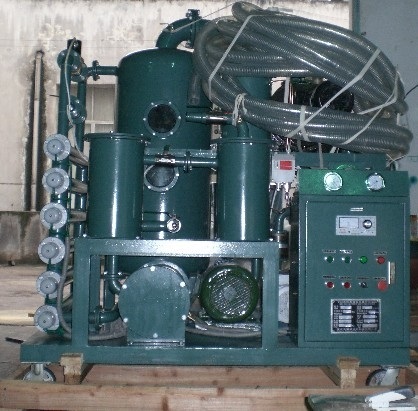

ZYD transformer oil purifier is special for filtering the used and old transformer oil, mutual oil, switch oil.

Transformer oil purification machine,degasification, dehydration, remove mechanical impurities, increase breakdownvoltage

Removes water,trace water from oil

Reducescombustible gases and oxygen

Improves oildielectric values

Improvestransformer power factor

Extends oilservice life

Extendstransformer service life and reliability

1. Double-stagevacuum system, strong power of vacuum evacuating, ultimate vacuum value ≤5Pa.

2. Two vacuumseparating chambers, efficient oil film sprayer, increasing separating size andseparating time to ensure the dry-level and dielectric strength improvinggreatly.

3. Duplex-Stereofilm evaporation technology, combined with unique and advanced dewatering,degassing components, can rapidly and effectively separate water, gas fromoil.

4. Multi-stageprecision filtration system, mesh filtration combined with molecular adsorptiontechnologies.

5. Efficientelectric heating system, heating uniformity, less power consumption, safe, andreliable.

6.Double-infrared liquid level sensor, pressure protective system to ensuremachine operation easy and safely.

7. Adoptinterlocked protective system, which connect oil pump, heater and liquid levelsensor, avoiding blank heating, blank pumping, oil leak and electricity leak. Ifthere is any fault, machine will be power off automatically.

8. Functions oflive line work onsite, vacuum drying and vacuum oil filling.
