Dielectric Transformer Oil Filtration Oil Purification Oil Restoration Unit

Payment Terms:	T/T,L/C
Place of Origin:	Chongqing, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: ZYD

Packing: WOODEN CASE

Type: Oil Purifier

Production Capacity: 100

Delivery Date: 15 DAYS

Brand Name: ZN

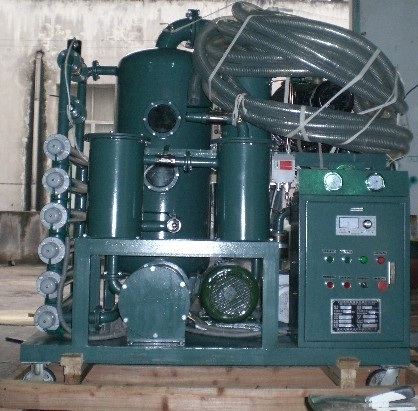

Transformer Oil Filtration Plant, specially used for filtering transformer oil, insulating oil.

ZYD transformer oil purifier is special for filtering the used and oldtransformer oil, mutual oil, switch oil. Comparing with the single-stage type,this machine adopts the double stages vacuum system, which can improve themachine's working vacuum value highly, so it can dewater, degas and remove theimpurity more deeply and effectively. The dielectric value of treated oil ishigher than 75KV. It is very suitable for the large electric & insulationequipments.

Features:
1. PH ≥5.5
2. Acid ≤ 0.03mgkoH/g
3. Flash point≥145°C
4. Dielectric strength≥75KV
5. Dielectric loss: tgδ(90°C)%≤0.001
6. High vacuum: High point-Vacuum≤5pa Working-vacuum≤35pa
7. Highabsorption speed: Absorption speed power≥333L/Sr.
8. Duplex 3Dstereo-evaporation, eliminating the liquid water quickly
9. UK G technologyby which the trace water that is show chain, such as dissolved water, can beremoved effectively.
10. Distinctive removing impurities system filteringthrough double FH trapezoidal network and absorbing by high polymer without themechanical power
11. Carbon fiber infrared heating system that can make theoil contains zero sum of ethyne after the treatment
12. Specially applied tovacuum oiling and drying for power transmission equipments that are over110KV
13. The oil of any grades can be treated on line at the workingsite.
