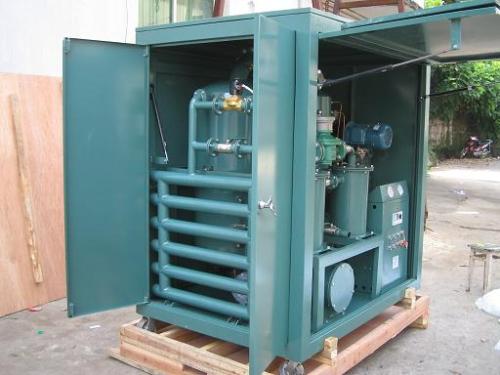

ZYD-I Transformer Oil Filtering, Oil Purification unit, Oil Purifier regeneration system

Payment Terms:	T/T,L/C
Place of Origin:	Chongqing, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: ZYD

Packing: WOODEN CASE

Structure: Vacuum Filter

Material: Others

Production Capacity: 100

Delivery Date: 15 DAYS

Function: Oil Filter

Brand Name: ZN

ZYD is special for treating the used and old transformer oil, mutual oil, switch oil.

Application:

This oilpurification plant is applied to filter various of unqualified insulation oilsincluding aging transformer oil, insulation oil, specially for the power whichis above 110KV, mutual inductor oil, switch oil and so on. Also it can injectthe insulating oil into the transformers on-line.

Features:

1.Double-stage High Vacuum dehydration and degassing and removing impurities fromthe used transformer oil.
2. Eliminate acidity, sludge, free carbon,discoloration elements, and other soluble matters in the oil, which decays thetransformer.
3. It can vacuum filling oil to transformers, and it can vacuumdry transformers and on-line operation with transformer.
4. The standardZYD system is designed for purifying and filtering oils in workshops, in storagetanks or directly in transformers (energized or de-energized transformers).

Theoil technical data after treatment:
1. Gas content is less than0.1%
2. Impurity size is less than 1μm without free carbon

3. Watercontent is less than 3 part per million
3. Oil dielectric strength (breakdownvoltage) is more than 75KV
4. Acidity value is less than 0.01 mgKOH/g
5. Dielectric loss factors at 90°C is less than 0.001

Zhongneng oilpurifier is the most efficient and economical purification system.
